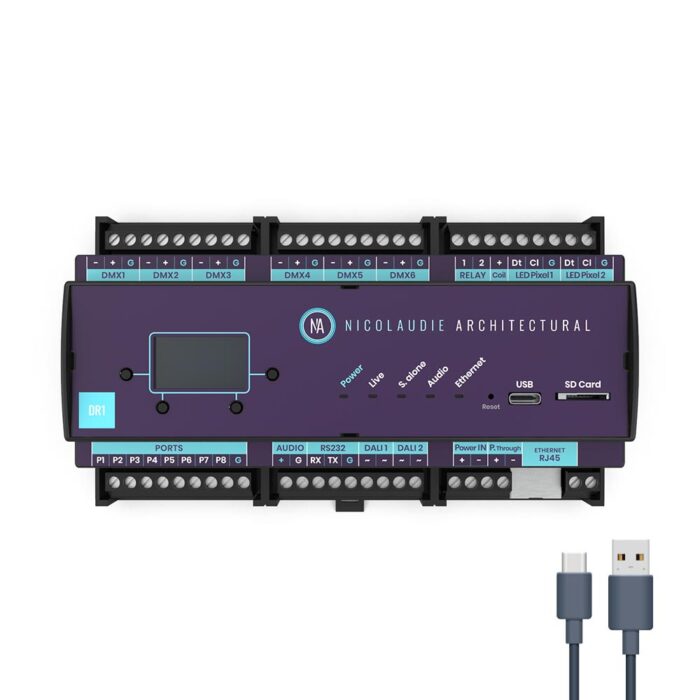

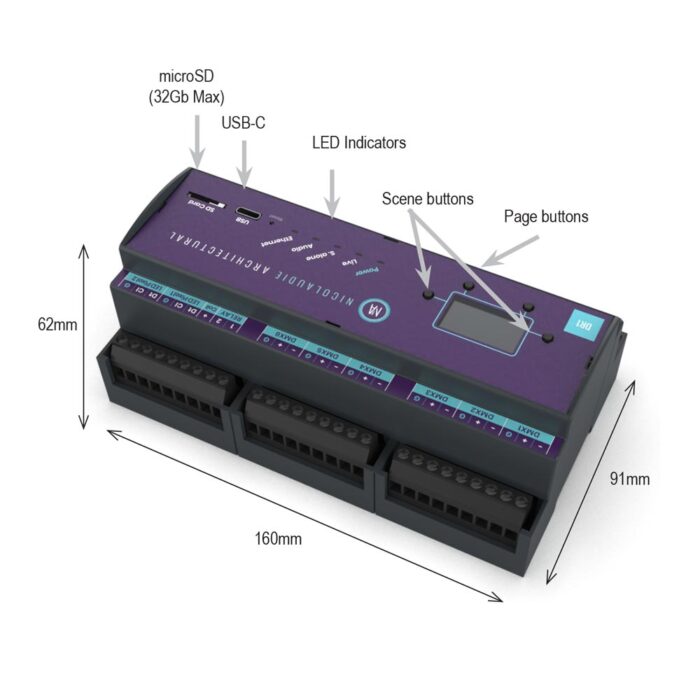

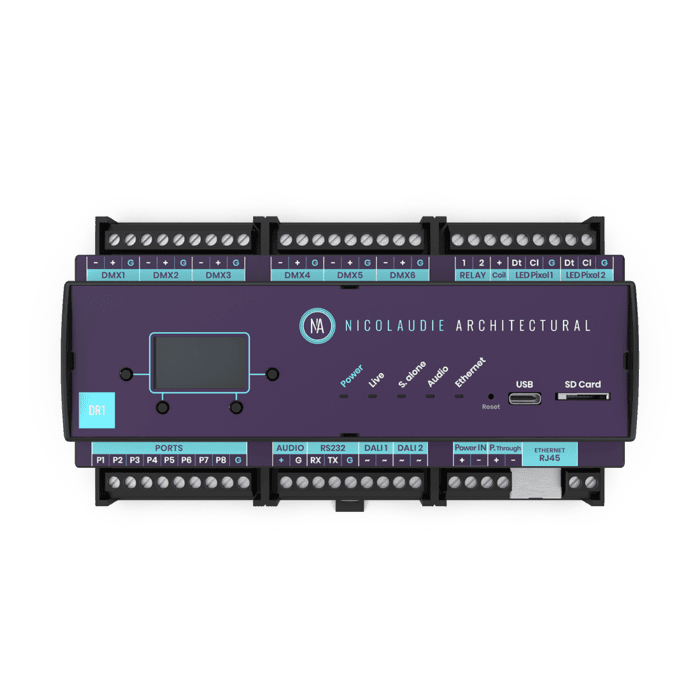

Designed for din-rail mounting, the DR1 is a strong and durable solution for fixed lighting installations. 3072 (expandable to 6144 with eDMX) channels (1024 RGB or 768 RGBW fixtures) can be controlled over several protocols : DMX 512, Art-Net or SACN, LED Pixel, DALI. Multiple controllers can be connected and synchronised for large-scale lighting installation.

Built on the NSA (New Stand Alone) engine, the DR1 offers multi-zone show control as well as advanced and flexible triggering and integration possibilities: Time, Audio, Ports, RS232, TCP, DALI…

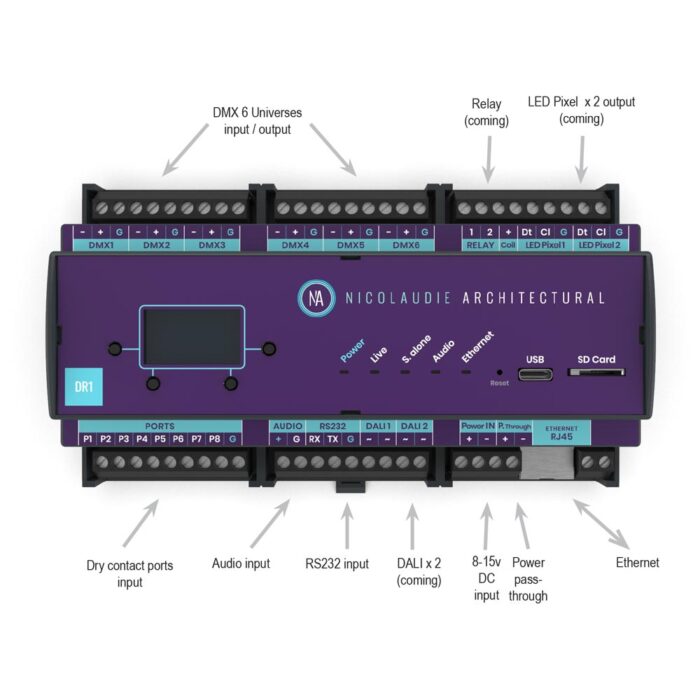

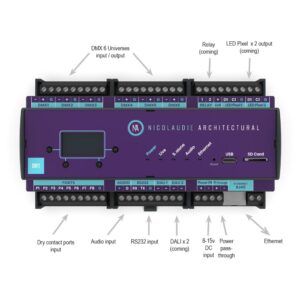

This is the first lighting controller offering an all-in-one solution with multiple protocols. The DR1 can output DMX, Art-Net, SACN, DALI, LED pixel and create a control gateway for the most demanding dynamic lighting installations.

There is nothing easier than programming the DINA-DR1: connect the controller to your computer (PC or Mac) over USB/Ethernet and start the ESA2 or ESA Pro2 software. No computer available? No problem, connect the DINA-DR1 to the local network and use the on-site programming app Arcolis Designer to program the device with your smartphone or tablet.
